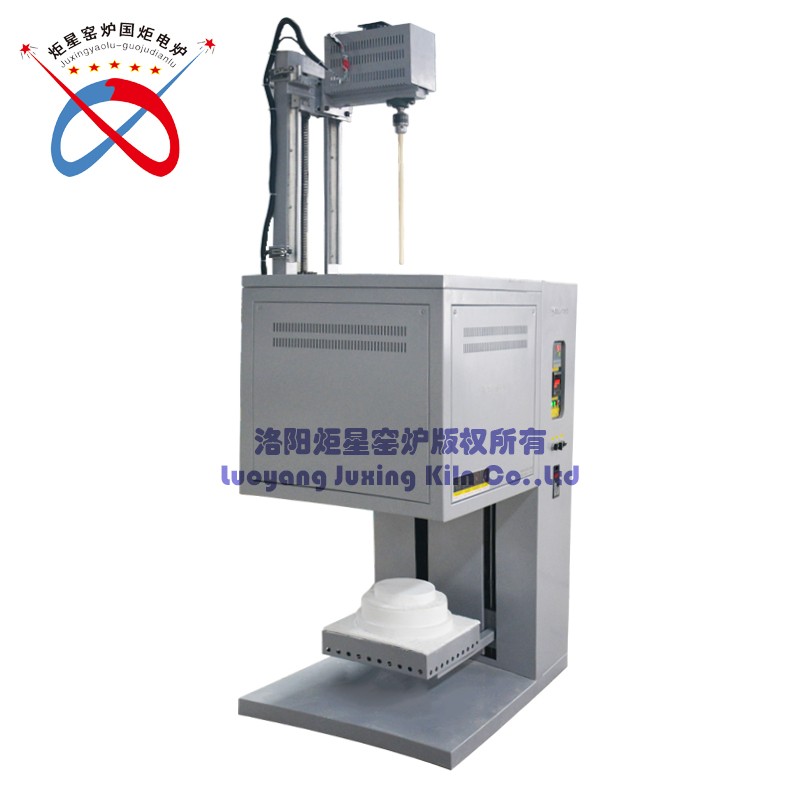

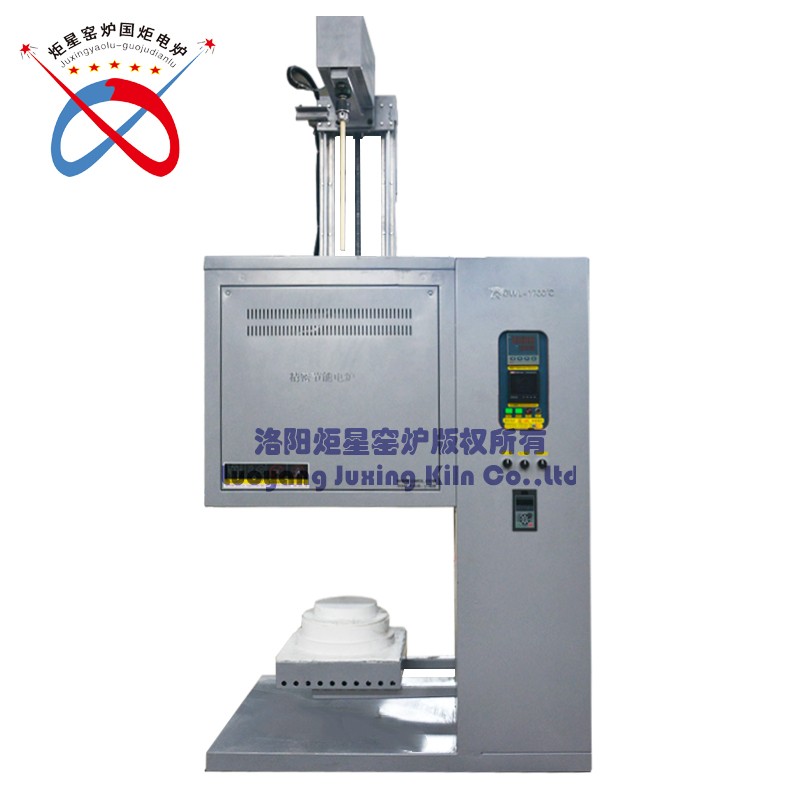

GWL Series high-temperature bottom loading furnace with the stirring system. The combination of the control system and furnace chamber, Furnace lining using vacuum forming high purity alumina light material.Touch screen control with screw mandrel lifting method, more convenience to use. Using high purity alumina rod as the stir rod, adjustable stirring speed, Ensure the material is fully heated.

  Standard features

• 1700°C maximum operating temperature

• Furnace chamber diameter can be customized

• Furnace chamber height can be customized

• Double layer furnace shell air cooling ensure the surface temperature less than 45℃

• Temperature accuracy ：±1℃; Temperature uniformity：±1℃(Base on Heating zone size)

• the intelligent touchscreen control

• Vacuum formed, low thermal mass insulation

• Silicon carbide rod or silicon molybdenum rod fitted as standard

• Double layer protection(over current, over temperature and over voltage etc)

• Using high purity alumina rod as the stirring rod(corundum rod), adjustable speed.

Options (specify these at time of order)

• Control software and system.

• Multi-face heating

• Anti-corrosion

• Multi-temperature control

*Content may be subject to modifications or corrections
